SF

Click on a product for data (PDF)

Swipe horizontally to view full table.

Glass Type Glass Code nd νd Specific Gravity Coloring
717296 1.717360 29.57 3.07 415/360
648337 1.647690 33.73 2.72 390/355
755276 1.755200 27.57 3.22 420/365
673322 1.672700 32.19 2.90 400/360
805255 1.805180 25.45 3.34 440/365
805255 1.805180 25.45 3.34 425/360
640346 1.639800 34.55 2.76 395/355
689312 1.688930 31.16 2.93 405/360
728284 1.728250 28.38 3.06 415/365
785256 1.784720 25.64 3.25 430/365
741277 1.740770 27.74 3.10 420/365
762266 1.761820 26.58 3.17 425/365
699301 1.698950 30.13 2.95 405/360
847238 1.846660 23.80 3.53 (415/370)
847238 1.846660 23.80 3.53 (405/370)
785263 1.784700 26.27 3.28 435/365
808227 1.808090 22.74 3.31 445/370
808227 1.808090 22.74 3.31 420/370
861231 1.860740 23.08 3.82 (415/370)
664274 1.663820 27.35 2.89 425/375
756247 1.755750 24.71 3.19 445/375
713260 1.713380 26.04 3.09 425/375
622307 1.622000 30.66 2.81 405/370
796226 1.796310 22.61 3.31 475/385

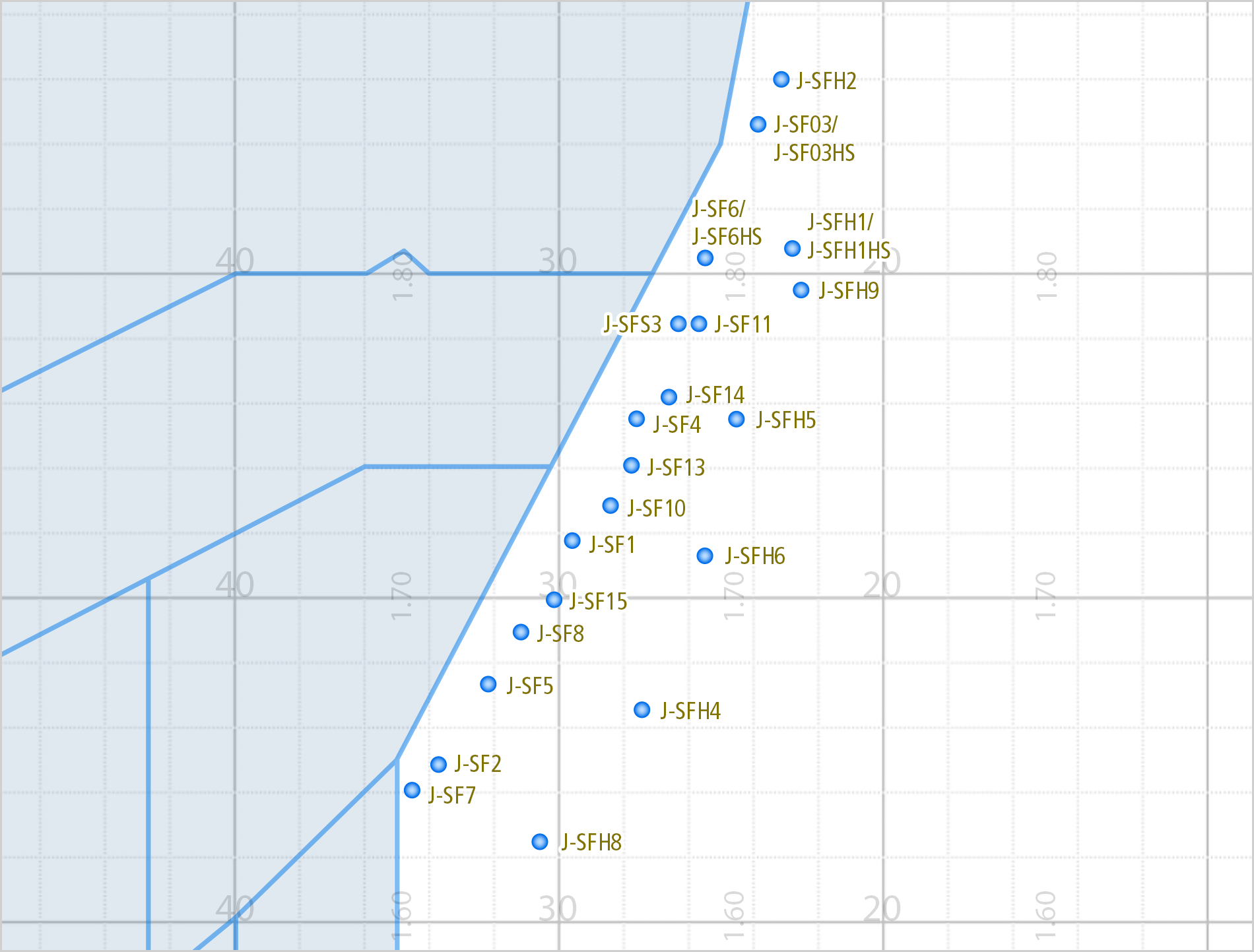

diagram
