Additional Powder Feeder Enhances Multi-Material Development Capabilities
Add-on unit for Metal Additive Manufacturing System, Lasermeister 102A
October 10, 2024

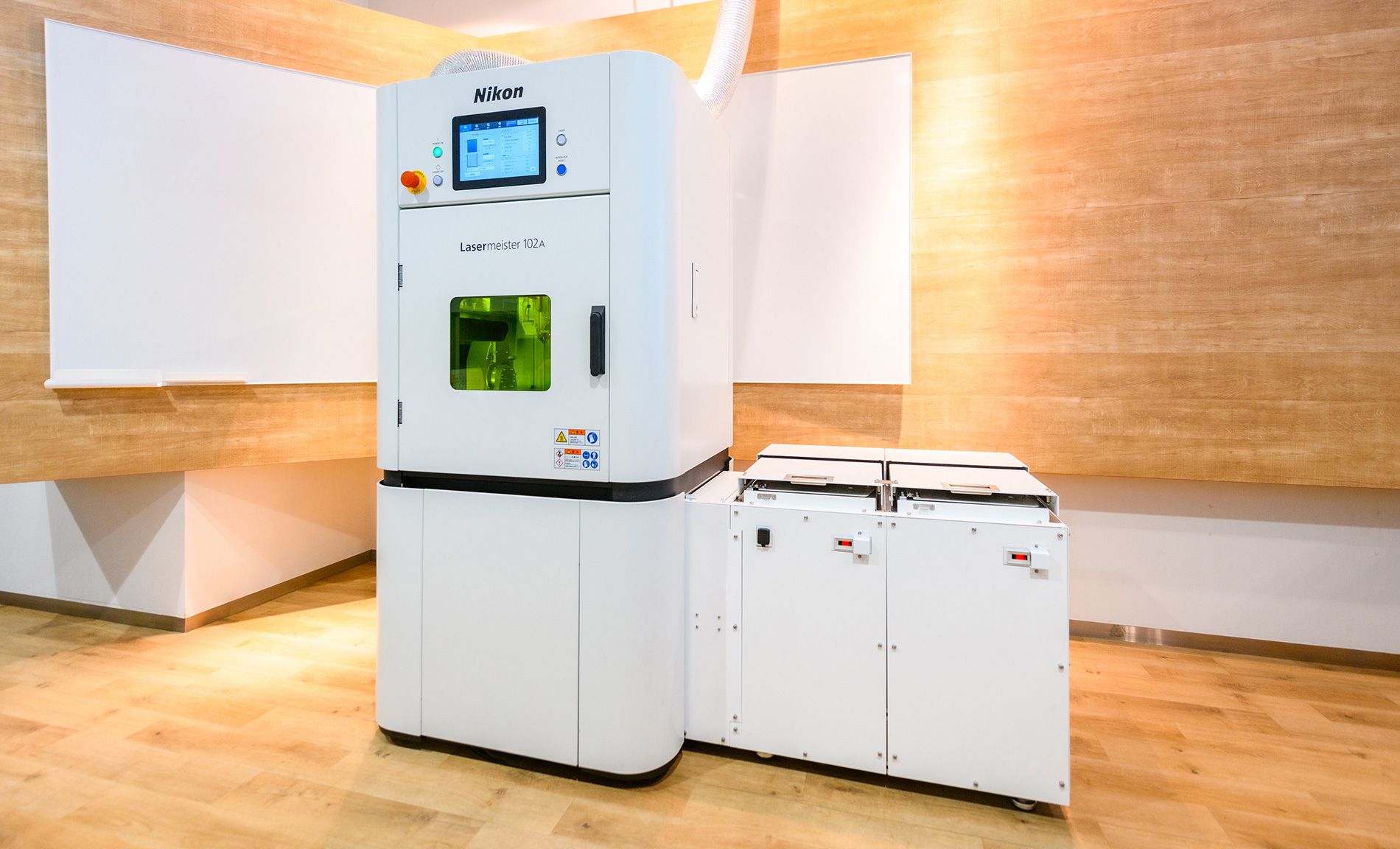

TOKYO - Nikon Corporation (Nikon) is pleased to announce the release of the Additional Powder Feeder (APF) known as the optional powder feeder unit, which enables feeding multiple kinds of metal powders into the metal additive manufacturing system, the Lasermeister 102A (LM102A). These enhanced capabilities contribute to the development of new value-added alloys and components that consist of multiple kinds of metals using the LM102A.
Design is subject to change.
Overview
| Name of unit | Additional Powder Feeder |
|---|---|
| Order timing | Dec.2024 ~ |
Development Background
In fields such as aerospace, defense, and energy, high durability and corrosion resistance are essential in ensuring stable performance in harsh environments, including operating under extremely high temperatures. Existing superalloys alone may not sufficiently satisfy new parts' requirements, whereas developing novel superalloys by combining multiple metals may deliver critical next-level performance. Universities and corporate research institutes are already developing such solutions, and Nikon is pleased to offer the APF to enable superalloy development using small amounts of metals to support such programs.
Key Benefits
- APF is an optional unit for the small-footprint LM102A, Direct Energy Deposition (DED) type AM system that enables superalloy development using small amounts of metal powders.
- Two to four APF can be incorporated to achieve specific user objectives.
- To maximize flexibility - APF can feed up to 4 different kinds of metal powder to the AM system.

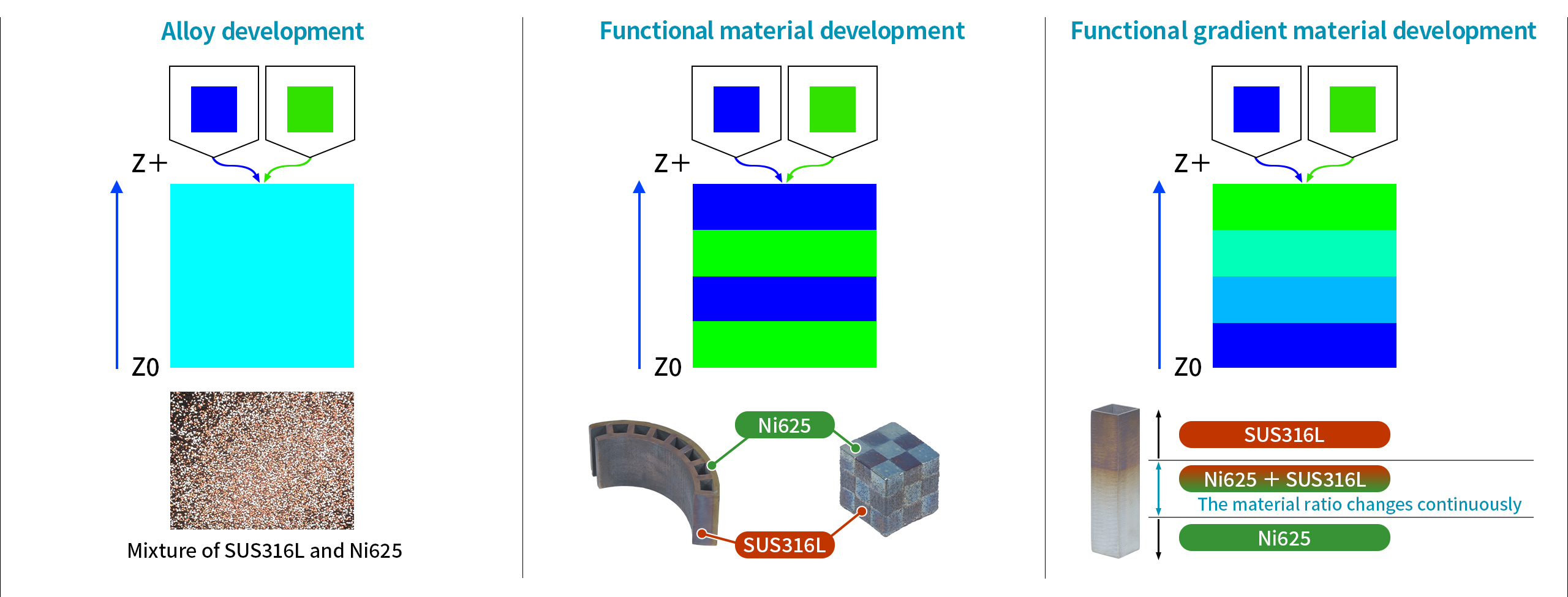

Applications
- Alloy development
- Functional material development
- Functional gradient material development
Specification
Swipe horizontally to view full table.
| Size (W x D x H)*1 | 2442 mm x 750 mm x 1750 mm |
|---|---|
| Weight*1 | 559.5 kg |
| Max. powder load*2 | 5 kg~20 kg |
The software will be updated regularly.
- *1LM102A + 4 APF units
- *25 kg / APF unit
The information is current as of the date of publication. It is subject to change without notice.
