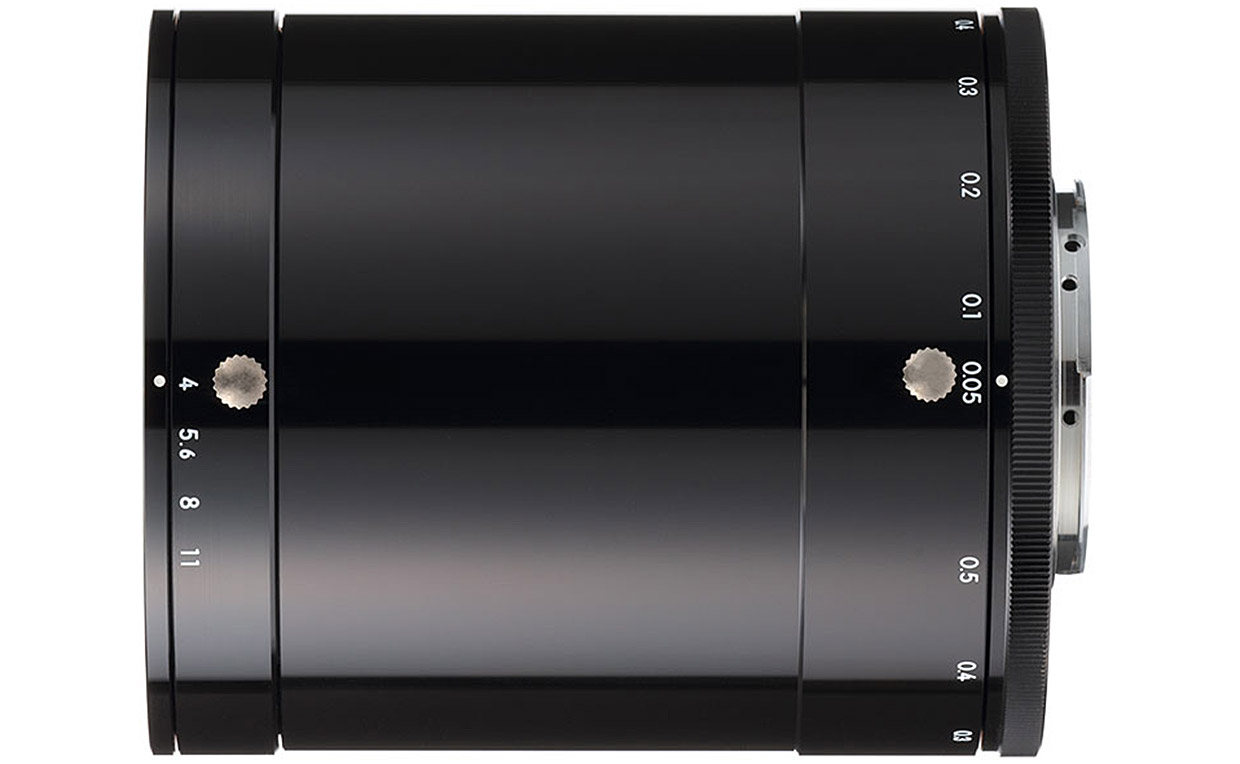

Industrial Micro Lens
Magnification scale
Image size
F Number
-0.05x - -1x
86.4 mmΦ
F4
82 mmΦ
Features
- Rayfact MJ 90 mm F4: Variable magnification range of -0.05x - -0.5x
- Rayfact MJ 95 mm F4: Variable magnification range of -0.5x - -1.0x
- For high resolution, large-sized line and area sensor cameras.
- High performance guaranteed in all range of magnification.
- Aperture lockable screw and floating ring lockable screw for easy use.
- Unit sales with a wide range of mounts to fit in your camera.
Applications
- Image receiving process by both line and area censor cameras
- Flat panel inspection
- PCB inspection
- Wafer inspection
- Printed materials inspection
Specifications
Rayfact MJ 90 mm F4
Swipe horizontally to view full table.
| Model |
Refer to the following table |
| Magnification range |
-0.05x - -0.5x |
| Magnification |
-0.05x |
-0.1x |
-0.2x |
-0.3x |
-0.4x |
-0.5x |
| Focal length |
89.8 mm |
90.0 mm |
90.4 mm |
90.8 mm |
91.2 mm |
91.6 mm |
| F Number (∞) |
F4 |
| NA |
0.006 |
0.011 |
0.021 |
0.029 |
0.036 |
0.042 |
| Reference wavelength |
546.07 nm (e-line) |
| Wavelength range |
400 - 700 nm |
| Image size |
86.4 mmΦ |
| Object size |
1728 mm |
864 mm |
432 mm |
288 mm |
216 mm |
172.8 mm |
| Distortion *1 |
+0.5% |
+0.3% |
+0.1% |
+0.1% |
+0.1% |
+0.1% |
| Relative illumination *1 |
65.8% |
68.4% |
72.4% |
75.5% |
78.0% |
80.1% |
| Aperture scale |
4 5.6 8 11 |
| Object-to-image distance |
1967.3 mm |
1069.6 mm |
634.2 mm |
496.3 mm |
432.3 mm |
397.7 mm |
| Working distance |
1820.4 mm |
922.7 mm |
487.2 mm |
348.0 mm |
274.4 mm |
230.3 mm |
| Mount size |
Refer to the following table |
| Flange-to-image distance |
Refer to the following table |
| Attachment size |
M52 (P=0.75) |
| Diameter/length *2 |
Refer to the following table |
| Weight |
Refer to the following table |
| Model |
Camera Mount |
Diameter/length *2 |
Weight |
| 1) OVM05042MN-M72D1 |
M72 (M.B.f=19.56 mm) |
84 mmΦ x 127.3 mm - 147.9 mm |
Approximately 920g |
| 2) OVM05042MN-M72D2 |
M72 (M.B.f=6.56 mm) |
84 mmΦ x 140.3 mm - 160.9 mm |
Approximately 940g |
| 3) OVM05042MN-M72D3 |
M72 (M.B.f=12 mm) |
84 mmΦ x 134.9 mm - 155.5 mm |
Approximately 930g |
| 4) OVM05042MN-M72N |
M72 (M.B.f=31.8 mm) |
84 mmΦ x 115.1 mm - 135.7 mm |
Approximately 900g |
| 5) OVM05042MN-M90D |
M90 (M.B.f=12 mm) |
95 mmΦ x 134.9 mm - 155.5 mm |
Approximately 950g |
| 6) OVM05042MN-NMT |
M84.5 (M.B.f=41 mm) |
93 mmΦ x 105.9 mm - 126.5 mm |
Approximately 890g |
| 7) OVM05042MN-FMT |
F Mount (M.B.f=46.5 mm) |
84 mmΦ x 100.4 mm - 121.0 mm |
Approximately 880g |
| 8) OVM05042MN-M95E |
M95 (M.B.f=9.4 mm) |
100 mmΦ x 137.5 mm - 158.1 mm |
Approximately 960g |
- *1Maximum image height (Y'=41 mm) at F5.6
- *2Dimension excludes protrusion of screws or other convex part.
Rayfact MJ 95 mm F4
Swipe horizontally to view full table.
| Model |
Refer to the following table |
| Magnification range |
-0.5x - -1x |
| Magnification |
-0.5x |
-0.6x |
-0.7x |
-0.8x |
-0.9x |
-1x |
| Focal length |
93.9 mm |
94.3 mm |
94.7 mm |
95.1 mm |
95.5 mm |
95.9 mm |
| F Number (∞) |
F4 |
| NA |
0.041 |
0.047 |
0.051 |
0.055 |
0.059 |
0.062 |
| Reference wavelength |
546.07 nm (e-line) |
| Wavelength range |
400 - 700 nm |
| Image size |
82 mmΦ |
| Object size |
164.0 mm |
136.7 mm |
117.1 mm |
102.5 mm |
91.1 mm |
82.0 mm |
| Distortion *1 |
-0.2% |
-0.2% |
-0.1% |
-0.0% |
+0.0% |
+0.1% |
| Relative illumination *1 |
81.5% |
83.2% |
84.6% |
85.6% |
86.8% |
87.6% |
| Aperture scale |
4 5.6 8 11 |
| Object-to-image distance |
408.0 mm |
386.6 mm |
374.5 mm |
368.1 mm |
365.4 mm |
365.3 mm |
| Working distance |
199.3 mm |
177.9 mm |
165.8 mm |
159.4 mm |
152.0 mm |
141.8 mm |
| Mount size |
Refer to the following table |
| Flange-to-image distance |
Refer to the following table |
| Attachment size |
M52 (P=0.75) |
| Diameter/length *2 |
Refer to the following table |
| Weight |
Refer to the following table |
| Model |
Camera Mount |
Diameter/length *2 |
Weight |
| 1) OVM10062MN-1-M72D1 |
M72 (M.B.f=19.56 mm) |
84 mmΦ x 189.1 mm - 204.0 mm |
Approximately 1210g |
| 2) OVM10062MN-1-M72D2 |
M72 (M.B.f=6.56 mm) |
84 mmΦ x 202.1 mm - 217.0 mm |
Approximately 1230g |
| 3) OVM10062MN-1-M72D3 |
M72 (M.B.f=12 mm) |
84 mmΦ x 196.7 mm - 211.5 mm |
Approximately 1220g |
| 4) OVM10062MN-1-M72N |
M72 (M.B.f=31.8 mm) |
84 mmΦ x 176.9 mm - 191.7 mm |
Approximately 1190g |
| 5) OVM10062MN-1-M90D |
M90 (M.B.f=12 mm) |
95 mmΦ x 196.7 mm - 211.5 mm |
Approximately 1240g |
| 6) OVM10062MN-1-NMT |
M84.5 (M.B.f=41 mm) |
93 mmΦ x 167.7 mm - 182.5 mm |
Approximately 1180g |
| 7) OVM10062MN-1-FMT |
F Mount (M.B.f=46.5 mm) |
84 mmΦ x 162.2 mm - 177.0 mm |
Approximately 1200g |
| 8) OVM10062MN-1-M95E |
M95 (M.B.f=9.4 mm) |
100 mmΦ x 199.3 mm - 214.1 mm |
Approximately 1250g |
- *1Maximum image height (Y'=41 mm) at F5.6
- *2Dimension excludes protrusion of screws or other convex part.
- Specifications unless any specific instructions are stated is at the standard magnification.
- Specifications are subject to change without prior notice.
