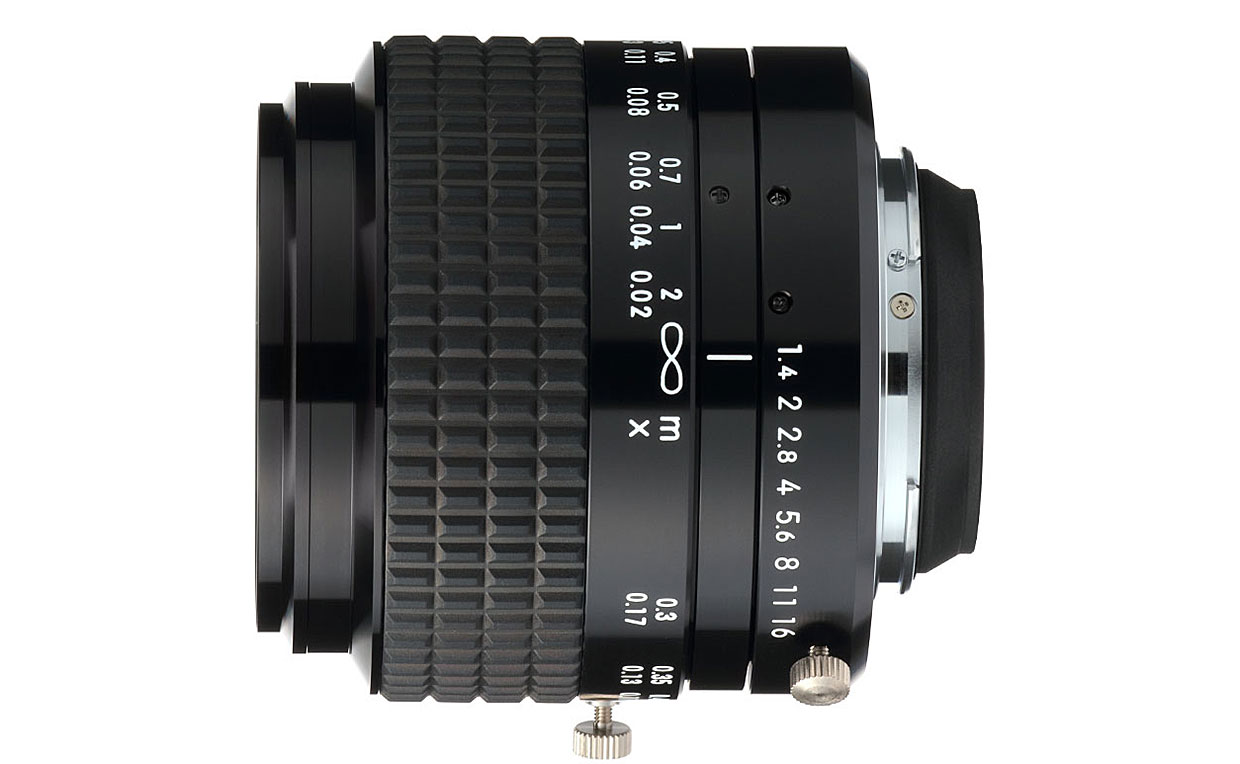

Industrial Macro Lens

  • Magnification scale
  • Image size
  • F Number
  • ∞ - -0.17x
  • 43.2 mmΦ
  • F1.4

Features

  • “Ai Nikkor 35 mm f/1.4S” optical system adopted
  • Aperture ring and focus ring lockable screw for easy use.
  • Lens for industrial use

Applications

  • CCD camera photographing
  • Printed materials inspection
  • Fine pattern inspection - e.g. PCB
  • Fine pattern inspection and detecting defects - e.g. TAB, sheets
  • *This lens cannot be used with the consumer-use camera made by Nikon. Camera may be damaged.

Specifications

Rayfact NR 35 mm F1.4

Swipe horizontally to view full table.

Model BA01031
Magnification range ∞ - -0.17x
Distance scale m ∞ 2 1 0.7 0.5 0.4 0.35 0.3
Magnification *1 - -0.017x -0.037x -0.056x -0.084x -0.112x -0.135x -0.169x
Focal length 36.1 mm 36.0 mm 35.9 mm 35.9 mm 35.8 mm 35.6 mm 35.6 mm 35.4 mm
F Number (∞) F1.4
Reference wavelength 587.56 nm (d-line)
Wavelength range 400 - 700 nm
Image size 43.2 mmΦ
Distortion *2 -2.4% -2.7% -3.0% -3.3% -3.7% -4.1% -4.3% -4.6%
Relative illumination Y'=15 mm 48.4% 50.0% 51.7% 53.4% 55.9% 58.4% 60.4% 63.3%
Y'=21.6 mm 20.2% 21.7% 23.4% 25.1% 27.6% 30.2% 32.3% 35.6%
Aperture scale 1.4 2 2.8 4 5.6 8 11 16
Object-to-image distance - 2142.4 mm 1033.6 mm 717.3 mm 508.1 mm 404.5 mm 353 mm 301.5 mm
Working distance - 2033.7 mm 924.3 mm 607.5 mm 397.6 mm 293.1 mm 241 mm 188.6 mm
Mount size FMount size
Flange-to-image distance 46.5 mm
Attachment size M52 x 0.75
Diameter/length *3 67.5 Φ x 61.8 - 66.4 mm
Weight Approximately 430g
  • *1Shooting magnification: Magnification including distortion and an image size of 43.2 mmΦ
  • *2Maximum image height (Y'=21.6 mm) at F1.4
  • *3Dimension excludes protrusion of screws or other convex part.
  • Specifications unless any specific instructions are stated is at the standard magnification.
  • Specifications are subject to change without prior notice.
