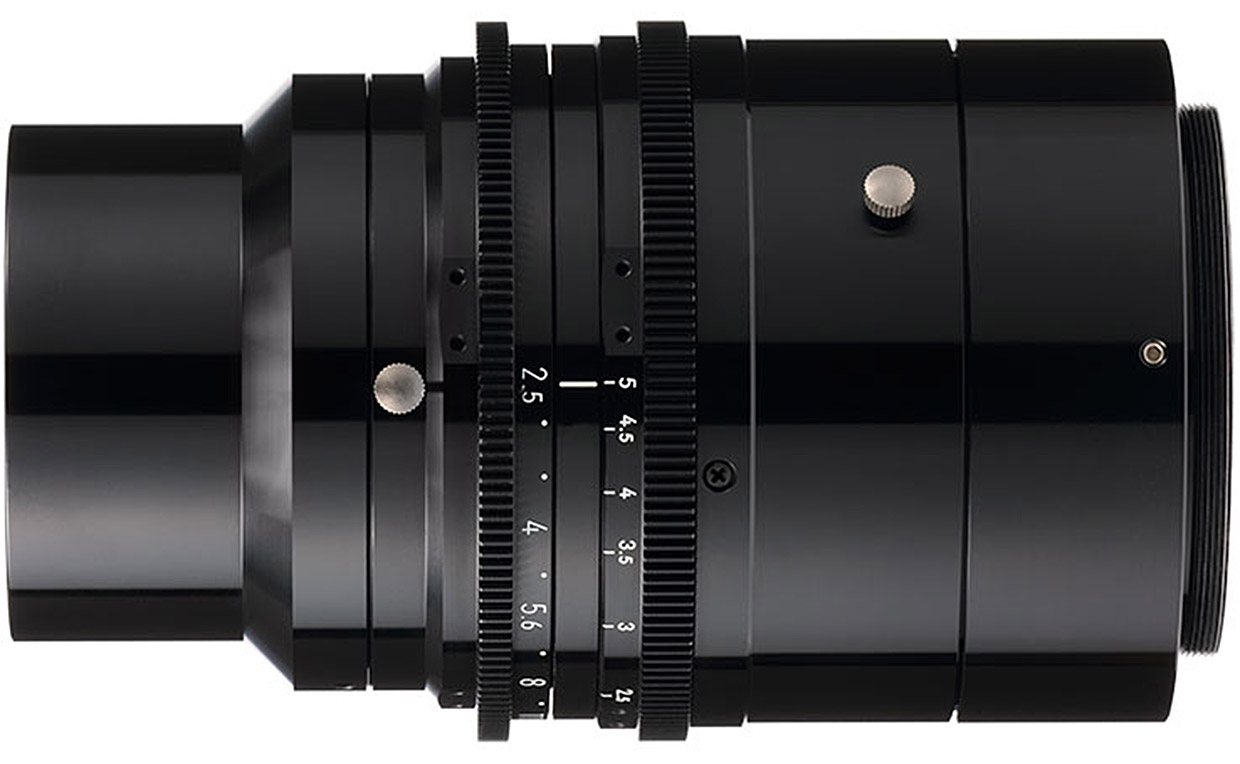

High-resolution and Large Format Industrial Lens with Variable Magnification

  • Magnification scale
  • Image size
  • F Number
  • -1x - -2x
  • 82 mmΦ
  • F1.8
  • -2x - -5x
  • 86.4 mmΦ
  • F2.5
  • -3x - -6x
  • F2.8

Features

  • Prism optical optimization model available.
  • Large image size - 86.4 mmΦ, 82 mmΦ - For high resolution, large-sized line sensor cameras.
  • Less difference in performance, securing performance in the whole range of magnification.
  • Diaphragm and floating ring setting lockable screws
  • The gears of the diaphragm ring and floating ring can be moved by external drive.

Applications

  • Inspection by high-resolution line sensor cameras
  • Flat panel inspection
  • PCB inspection
  • Wafer inspection

Specifications

Rayfact RF3-6x

Swipe horizontally to view full table.

Model BA01941
Magnification range -3x - -6x
Magnification -3.0x -3.5x -4.0x -4.5x -5.0x -5.5x -6.0x
Focal length 108.1 (-3x) mm
F Number (∞) F1.8 - F11
NA ≧0.2
Wavelength range 400 nm - 700 nm
Image size 82mmΦ
Distortion *2 +0.1% +0.1% +0.1% +0.1% +0.0% +0.0% +0.0
Relative illumination *2 91.6% 95.1% 97.3% 98.5% 98.9% 99.1% 99.2%
Object-to-image distance 582.3 mm 628.6 mm 676.5 mm 725.3 mm 774.7 mm 824.6 mm 875.0 mm
Working distance 83.5 mm 78.5 mm 74.8 mm 72 mm 69.7 mm 67.9 mm 65.7 mm
Mount size M67 (P=0.75)
Flange-to-image distance 332.8 mm 385.9 mm 438.8 mm 491.6 mm 544.2 mm 596.7 mm 649.3 mm
Diameter/length *1 110Φ x 166 - 160 mm
Weight Approximately 2,500g
  • *1Dimension excludes protrusion of screws or other convex part.
  • *2Maximum image height (Y'=41 mm) at F1.8.

Rayfact RF3-6x prism-type

Swipe horizontally to view full table.

Model BA01951
Magnification range -3x - -6x
Magnification -3.0x -3.5x -4.0x -4.5x -5.0x -5.5x -6.0x
Focal length 108.1 (-3x) mm
F Number (∞) F1.8 - F11
NA ≧0.2
Wavelength range 400 nm - 700 nm
Image size 82mmΦ
Distortion *2 +0.1% +0.1% +0.1% +0.0% +0.0% +0.0% +0.0%
Relative illumination *2 91.7% 95.2% 97.4% 98.5% 98.9% 99.0% 99.2%
Object-to-image distance 593.3 mm 640.1 mm 688.3 mm 713.6 mm 787.3 mm 837.5 mm 888.3 mm
Working distance 93.3 mm 88.3 mm 84.6 mm 81.7 mm 79.4 mm 77.6 mm 75.3 mm
Mount size M67 (P=0.75)
Flange-to-image distance 333.9 mm 387.4 mm 440.7 mm 493.9 mm 546.9 mm 599.8 mm 652.7 mm
Diameter/length *1 Φ110 x 166.1 - 160 mm
Weight Approximately 2,450g
  • *1Dimension excludes protrusion of screws or other convex part.
  • *2Maximum image height (Y'=41 mm) at F1.8.

Rayfact 2-5x Variable Lens

Swipe horizontally to view full table.

Model L-OVM50167MN
Magnification range -2x - -5x
Magnification -2x -2.5x -3x -3.5x -4x -4.5x -5x (-5.2x) *2
Focal length 116 mm
F Number (∞) F2.5
NA 0.133 0.143 0.15 0.156 0.16 0.164 0.167 0.168
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size *1 43.2 mmΦ 34.6 mmΦ 28.8 mmΦ 24.7 mmΦ 21.6 mmΦ 19.2 mmΦ 17.3 mmΦ (16.6 mmΦ)
Distortion *1 +0.1% +0.0% -0.0% -0.0% -0.0% -0.0% 0.0% (-0.0%)
Relative illumination *1 90.5% 95.4% 98.1% 99.2% 99.5% 99.6% 99.7% (99.7%)
Aperture scale 2.5 2.8 4 5.6 8 11
Object-to-image distance 503.6 mm 550.4 mm 601.0 mm 653.8 mm 707.9 mm 763.0 mm 818.7 mm (841.1 mm)
Working distance 114.7 mm 102.8 mm 94.9 mm 89.2 mm 84.9 mm 81.6 mm 78.9 mm (78.0 mm)
Mount size M67 (P=0.75)
Flange-to-image distance 248.8 mm 307.5 mm 366.1 mm 424.6 mm 483.0 mm 541.4 mm 599.8 mm (623.1 mm)
Attachment size M58 (P=0.75)
Diameter/length *3 84 mmΦ x 140 mm
Weight Approximately 1350g
  • *1Maximum image height (Y'=43.2 mm) at F2.8.
  • *2-5.2x: To fix the magnification at -5.0x and move the lens outward up to the maximal point.
  • *3Dimension excludes protrusion of screws or other convex part.

Rayfact 2-5x Variable Lens Prism suitable model

Swipe horizontally to view full table.

Model L-OVM50170MN-BS
Magnification range -2x - -5x
Magnification -2x -2.5x -3x -3.5x -4x -4.5x -5x (-5.2x)*2
Focal length 117mm
F Number (∞) F2.5
NA 0.133 0.144 0.151 0.157 0.162 0.166 0.17 0.171
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size *1 43.2 mmΦ 34.6 mmΦ 28.8 mmΦ 24.7 mmΦ 21.6 mmΦ 19.2 mmΦ 17.3 mmΦ (16.6 mmΦ)
Distortion *1 +0.1% -0.0% -0.0% -0.1% -0.1% -0.1% -0.1% (-0.0%)
Relative illumination *1 88.2% 93.3% 96.2% 97.5% 98.1% 98.6% 99.0% (99.1%)
Aperture scale 2.5 2.8 4 5.6 8 11
Object-to-image distance 513.7 mm 561 mm 612.1 mm 665.4 mm 720.1 mm 775.7 mm 831.9 mm (854.5 mm)
Working distance 119.8 mm 107.8 mm 99.8 mm 94 mm 89.9 mm 86.4 mm 83.6 mm (82.7 mm)
Mount size M67 (P=0.75)
Flange-to-image distance 253.9 mm 313.2 mm 372.3 mm 431.4 mm 490.3 mm 549.3 mm 608.3 mm (631.8 mm)
Attachment size M58 (P=0.75)
Diameter/length *3 84 mmΦ x 140 mm
Weight Approximately 1350g
  • *1Maximum image height (Y'=43.2 mm) at F2.5 with prism (25 mm thickness · material BK7 or equivalent) to put between an object and the lens.
  • *2-5.2x: To fix the magnification at -5.0x and move the lens outward up to the maximal point.
  • *3Dimension excludes protrusion of screws or other convex part.
  • Specifications unless any specific instructions are stated is at the standard magnification.
  • Specifications are subject to change without prior notice.

Rayfact 1-2x Variable Lens

Swipe horizontally to view full table.

Model L-OVM20117MN
Magnification range -1x - -2x
Magnification -1x -1.2x -1.4x -1.6x -1.8x -2x
Focal length 104.5 mm (-1x)
F Number (∞) F2.8
NA 0.092 0.099 0.105 0.109 0.113 0.117
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size *1 86.4 mmΦ 72 mmΦ 61.7 mmΦ 54 mmΦ 48 mmΦ 43.2 mmΦ
Distortion *1 +0.2% +0.1% +0.1% +0.0% -0.0% -0.0%
Relative illumination *1 82.9% 87.4% 90.6% 92.8% 94.1% 94.8%
Aperture scale 2.8 4 5.6 8 11
Object-to-image distance 434.9 mm 439.8 mm 449.6 mm 462.5 mm 477.6 mm 494.2 mm
Working distance 172.0 mm 154.3 mm 141.5 mm 131.7 mm 124.0 mm 117.7 mm
Mount size M67 (P=0.75)
Flange-to-image distance 106.2 mm 128.7 mm 151.3 mm 174.0 mm 196.8 mm 219.7 mm
Attachment size M67 (P=0.75)
Diameter/length *2 90 mmΦ x 156.8 mm
Weight Approximately 1750g
  • *1Maximum image height (Y'=43.2 mm) at F2.8.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 1-2x Variable Lens Prism suitable model

Swipe horizontally to view full table.

Model L-OVM20118MN-BS
Magnification range -1x - -2x
Magnification -1x -1.2x -1.4x -1.6x -1.8x -2x
Focal length 105.1 mm
F Number (∞) F2.8
NA 0.092 0.099 0.105 0.110 0.114 0.118
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size *1 86.4 mmΦ 72 mmΦ 61.7 mmΦ 54 mmΦ 48 mmΦ 43.2 mmΦ
Distortion *1 +0.2% +0.1% +0.0% +0.0% -0.0% -0.0%
Relative illumination *1 82.2% 86.8% 90.1% 92.4% 93.8% 94.5%
Aperture scale 2.8 4 5.6 8 11
Object-to-image distance 443.8 mm 448.7 mm 458.6 mm 464.8 mm 486.7 mm 503.4 mm
Working distance 179.8 mm 162.1 mm 149.2 mm 139.3 mm 131.6 mm 125.3 mm
Mount size M67 (P=0.75)
Flange-to-image distance 107.3 mm 129.9 mm 152.6 mm 175.4 mm 198.3 mm 221.4 mm
Attachment size M67 (P=0.75)
Diameter/length *2 90 mmΦ x 156.8 mm
Weight Approximately 1750g
  • *1Maximum image height (Y'=43.2 mm) at F2.8.
  • *2Dimension excludes protrusion of screws or other convex part.
