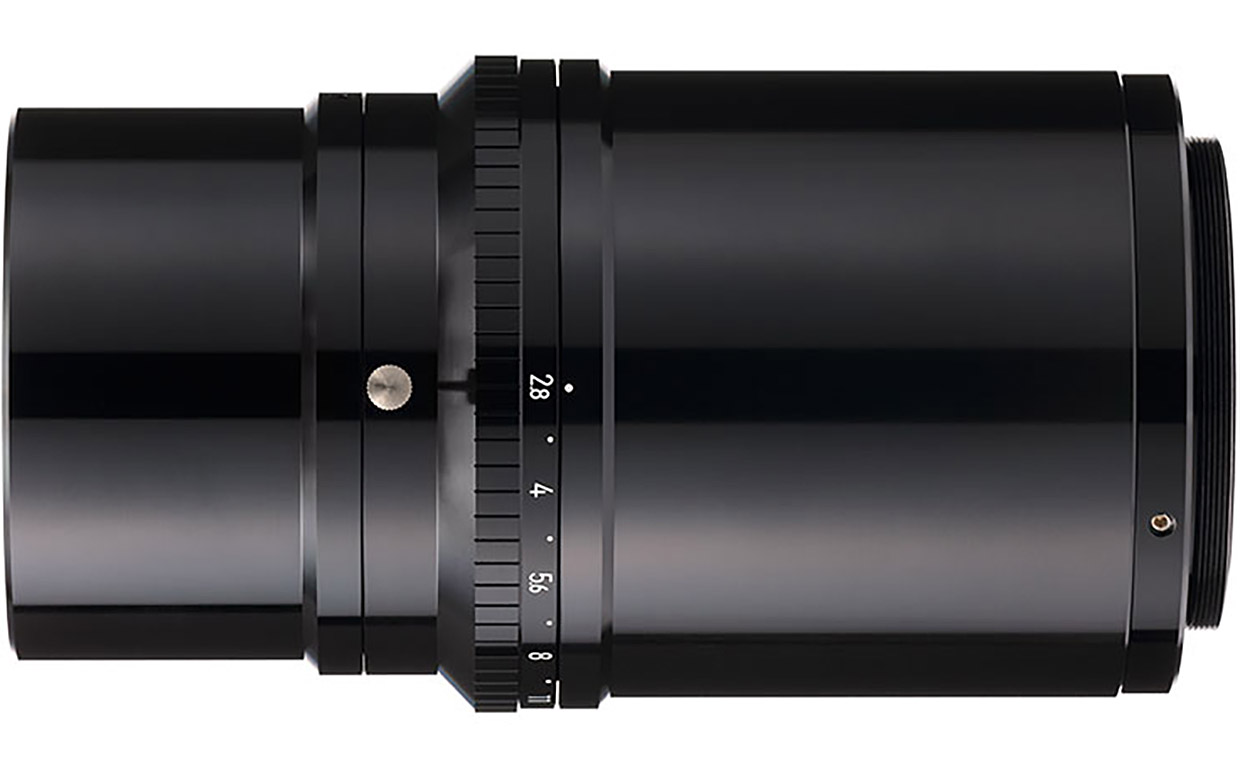

High-resolution and Large Format Industrial Lens

  • Magnification scale
  • Image size
  • F Number
  • -1.4x - -7x
  • 86.4 mmΦ
  • F2.8
  • 64 mmΦ
  • F2.5

Features

  • Prism optical optimization model available. (Coaxial vertical prism: Thickness up to 25 mm) (Handled)
  • Large image size - 86.4 mmΦ - For high resolution, large-sized line sensor cameras.
  • Recommendable line sensor cameras: 3.5 µm x 23K/5 µm x 16K (Rayfact 1.4S/1.75S), 5 µm x 16K/5.2 µm x 12K (Rayfact 2.5S/3.5S/5S)
  • Less difference in performance, securing performance in the whole range of magnification.
  • Diaphragm and floating ring setting lockable screws
  • Fixed magnification model: Choice of 5 types of magnification (1.4x⋅1.75x⋅2.5x⋅3.5x⋅5x)

Applications

  • Inspection by high-resolution line censor cameras
  • Flat panel inspection
  • PCB inspection
  • Wafer inspection

Specifications

Rayfact 1.4S / 1.75S

Swipe horizontally to view full table.

Model L-OFM14105MN L-OFM175112MN
Focal length 105.9 mm 106.9 mm
F Number (∞) F2.8
NA 0.105 0.112
Magnification scale -1.4x -1.75x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size 61.7 mmΦ 49.4 mmΦ
Distortion *1 +0.1% -0.0%
Relative illumination *1 90.6% 93.8%
Aperture scale 2.8 4 5.6 8 11
Object-to-image distance 449.6 mm 473.7 mm
Working distance 141.5 mm 125.8 mm
Mount size M67 (P=0.75)
Flange-to-image distance 151.3 mm 191.1 mm
Attachment size M67 (P=0.75)
Diameter/length *2 89 mmΦ x 156.8 mm
Weight Approximately 1450g
  • *1Maximum image height (Y'=43.2 mm) at F2.8.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 1.4S / 1.75S Prism suitable model

Swipe horizontally to view full table.

Model L-OFM14105MN-BS L-OFM175113-BS
Focal length 106.4 mm 106.9 mm
F Number (∞) F2.8
NA 0.105 0.113
Magnification scale -1.4x -1.75x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size 61.7 mmΦ 49.4 mmΦ
Distortion *1 +0.0% -0.0%
Relative illumination *1 90.1% 93.8%
Aperture scale 2.8 4 5.6 8 11
Object-to-image distance 458.6 mm 482.8 mm
Working distance 149.2 mm 133.4 mm
Mount size M67 (P=0.75)
Flange-to-image distance 152.6 mm 192.6 mm
Attachment size M67 (P=0.75)
Diameter/length *2 89 mmΦ x 156.8 mm
Weight Approximately 1450g
  • *1Maximum image height (Y'=43.2 mm) at F2.8.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 2.5S / 3.5S

Swipe horizontally to view full table.

Model L-OFM25143MN L-OFM35156MN
Focal length 116.3 mm
F Number (∞) F2.5
NA 0.143 0.156
Magnification scale -2.5x -3.5x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size 34.6 mmΦ 24.7 mmΦ
Distortion *1 +0.0% -0.0%
Relative illumination *1 95.4% 99.2%
Aperture scale 2.5 4 5.6 8 11
Object-to-image distance 550.4 mm 653.8 mm
Working distance 102.8 mm 89.2 mm
Mount size M67 (P=0.75)
Flange-to-image distance 307.5 mm 424.6 mm
Attachment size M58 (P=0.75)
Diameter/length *2 83 mmΦ x 140 mm
Weight Approximately 1200g
  • *1Maximum image height (Y'=43.2 mm) at F2.5.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 2.5S / 3.5S Prism suitable model

Swipe horizontally to view full table.

Model L-OFM25144MN-BS L-OFM35157MN-BS
Focal length 117.4 mm 117.5 mm
F Number (∞) F2.5
NA 0.144 0.157
Magnification scale -2.5x -3.5x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700nm
Image size 86.4 mmΦ
Object size 34.6 mmΦ 24.7 mmΦ
Distortion *1 -0.0% -0.1%
Relative illumination *1 93.3% 97.5%
Aperture scale 2.5 4 5.6 8 11
Object-to-image distance 561 mm 665.4 mm
Working distance 107.8 mm 94 mm
Mount size M67 (P=0.75)
Flange-to-image distance 313.2 mm 431.4 mm
Attachment size M58 (P=0.75)
Diameter/length *2 83 mmΦ x 140 mm
Weight Approximately 1200g
  • *1Maximum image height (Y'=43.2 mm) at F2.5.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 5S

Swipe horizontally to view full table.

Model L-OFM50167MN
Focal length 116.4 mm
F Number (∞) F2.5
NA 0.167
Magnification scale -5x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700 nm
Image size 86.4 mmΦ
Object size 17.3 mmΦ
Distortion *1 -0.0%
Relative illumination *1 99.7%
Aperture scale 2.5 4 5.6 8 11
Object-to-image distance 818.7 mm
Working distance 79 mm
Mount size M67 (P=0.75)
Flange-to-image distance 599.8 mm
Attachment size M58 (P=0.75)
Diameter/length *2 83 mmΦ x 140 mm
Weight Approximately 1200g
  • *1Maximum image height (Y'=43.2 mm) at F2.5.
  • *2Dimension excludes protrusion of screws or other convex part.

Rayfact 5S Prism suitable model

Swipe horizontally to view full table.

Model L-OFM50170MN-BS
Focal length 117.5 mm
F Number (∞) F2.5
NA 0.170
Magnification scale -5x
Reference wavelength 546.07 nm (e-line)
Wavelength range 400 - 700nm
Image size 86.4 mmΦ
Object size 17.3 mmΦ
Distortion *1 -0.1%
Relative illumination *1 99.0%
Aperture scale 2.5 4 5.6 8 11
Object-to-image distance 831.9 mm
Working distance 83.6 mm
Mount size M67 (P=0.75)
Flange-to-image distance 608.3 mm
Attachment size M58 (P=0.75)
Diameter/length *2 83 mmΦ x 140 mm
Weight Approximately 1200g
  • *1Maximum image height (Y'=43.2 mm) at F2.5.
  • *2Dimension excludes protrusion of screws or other convex part.
  • Specifications unless any specific instructions are stated is at the standard magnification.
  • Specifications are subject to change without prior notice.
